Descrição

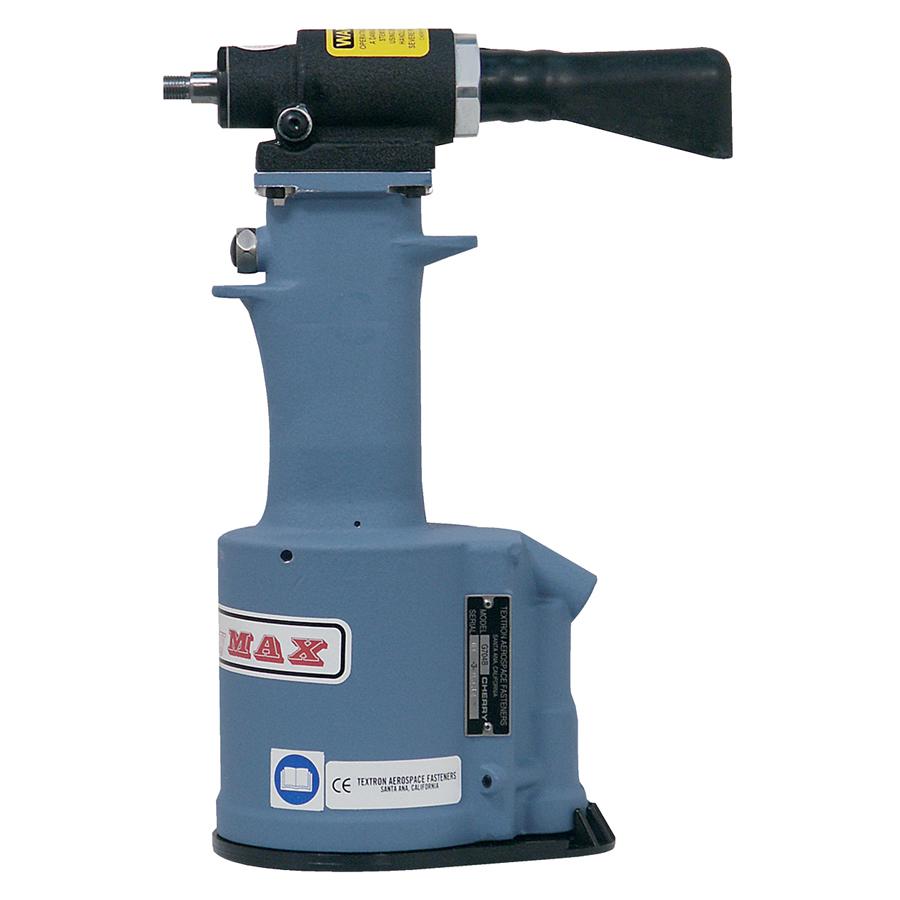

The G704B is a pneumatic-hydraulic tool designed especially for installation of CherryMAX and nut plate rivets. Its durable, all metal housing makes this tool ideal for use in rugged shop environments.
This tool utilizes straight, offset and right angle pulling heads, all of which can install -4, -5 and -6 diameter CherryMAX bulb type rivets in all head styles, materials and grip lengths. Extensions are available for extending the pulling heads to reach limited access areas.
A comfortable grip for one handed operation in any position.
Specifications:
Air Pressure: 90 PSI (6.2 bar) min./110 PSI (7.6 bar) max.
Cycle Time: approximately one second
Noise Level: 71 dB (A)
Vibration: less than 2.5 m/s2
Air Consumption: .16 SCF / cycle (4.53 L / cycle)
This tool utilizes straight, offset and right angle pulling heads, all of which can install -4, -5 and -6 diameter CherryMAX bulb type rivets in all head styles, materials and grip lengths. Extensions are available for extending the pulling heads to reach limited access areas.
A comfortable grip for one handed operation in any position.
Specifications:
Air Pressure: 90 PSI (6.2 bar) min./110 PSI (7.6 bar) max.
Cycle Time: approximately one second
Noise Level: 71 dB (A)
Vibration: less than 2.5 m/s2
Air Consumption: .16 SCF / cycle (4.53 L / cycle)
| STROKE | .510" |
| PULLING FORCE | 3,100 lbs (1,406 kgs) |
| WEIGHT | 4.25 lbs (1.9 kgs) |
| DESCRIPTION | Riveter Only |
