Descrição

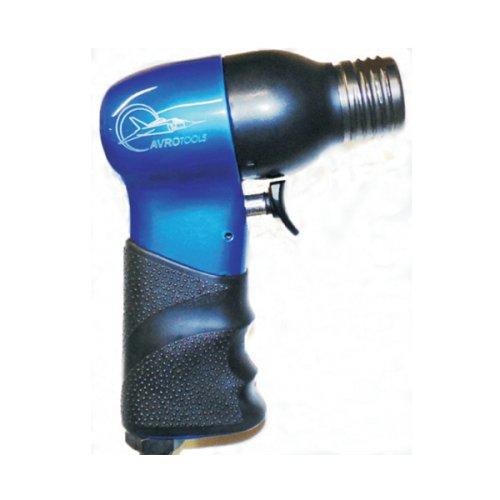

The AVRO series of Riveting Hammers features an “ERGONOMIC” housing design for maximum operator comfort. The comfort “ERGO GRIP”acts as a thermal protector and isolates vibrations. A spool valve system delivers slow, heavy blows necessary to drive rivets. An extremely sensitive teasing throttle permits precise control.
General
- Air Inlet: 1/4” NPT Standard
- Air pressure: 90 psi (620 kpa).
- Shank Diameter .401”
Specifictions
- Aluminum Capacity: 5/32"
- Steel Capacity: 3/32"
- Blows/Minute: 2850
- Bore: 9/26" (14.3 mm)
- Stroke: 1-7/8" (47.6 mm)
- Length: 4" (102 mm)
- Weight: 2.15 lbs (0.98 kg)
