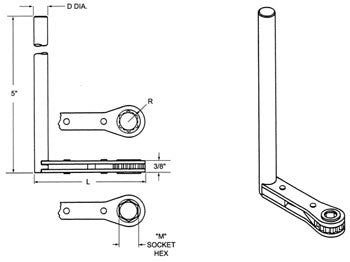

Hand Installation Tool Offset Ratchet Wrench.
Ordering Information
Ordering Information
• Determine broach hex dimensions of the pins to be installed.
• See table for (“B” and “E”) dimensions to match broached hex and required reach.
• Determine Complete Tool Assembly Part Number.
| “M” Socket Hex | Complete Tool Assy. Part Number | Dimensions | ||
|---|---|---|---|---|
| A | B | C | ||
| 7/32” | HLH216-218 | 0.312 | 2.37 | 0.280 |
| 1/4” | HLH216-250 | |||
| 9/32” | HLH216-281 | 0.312 | ||
| 5/16” | HLH216-312 | |||
| 11/32” | HLH216-343 | |||
| 3/8” | HLH216-375 | 0.440 | ||
| 7/16” | HLH216-437 | 0.375 | 2.95 | 0.375 |
| 1/2” | HLH216-500 | 0.440 | ||
