Features
- Accurate - Designed for safety critical applications with a CM/CMK of 2.0 at +/- 7% accuracy
- Economical - Save money, time and space by pairing up to 16 tools to just one Mpro Controller
- Ergonomic - Reduce operator fatigue with lighter, ergonomic tools
- Reliable - Increase uptime with 500k cycles between maintenance periods
- Interchangeable - Decrease downtime by swapping tools quickly on the assembly line with the LiveWire memory chip

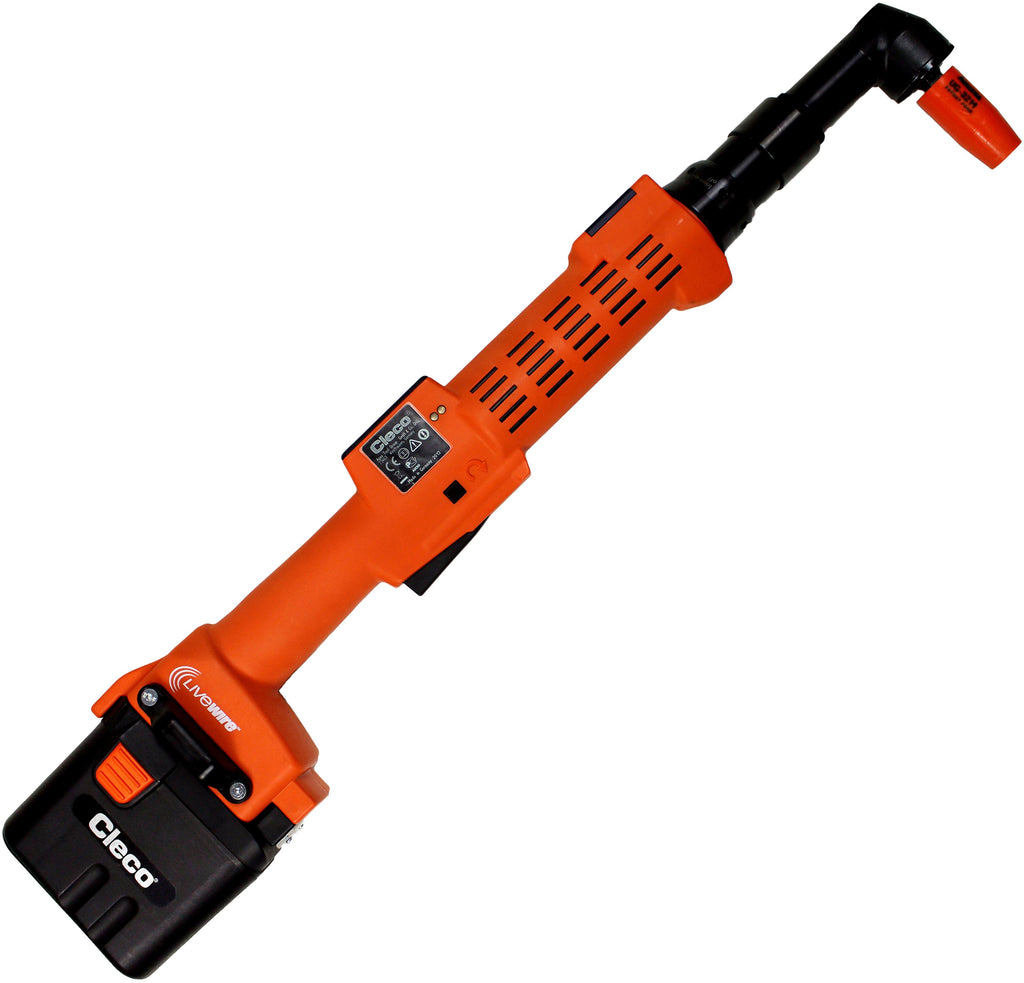

| Model: | 47BAYPB35P3L |
| Torque Range Min: | 8.9 ft/lbs |
| Torque Range Max: | 25.8 ft/lbs |
| Free Speed (26v): | 255 1/min |
| Free Speed (44v): | 446 1/min |
| Weight: | 4.14 lbs |
| Output Drive: | 3/8" Square Drive in|mm |
| Length: | 22.2 in |
| Length (w/26v Battery): | 23.0 in |
| Livewire Speed (vmax): | 446 1/min |
