Documentation
Descrição
Features
- Engineered to provide 1 million cycles maintenance-free
- Repeatability & accuracy of 2.0 Cm/Cmk at +/- 7%
- 6.0 Nm to 205 Nm Torque range
- 3/8, 1/2, 3/4 square output drive
- Configurable LED light rings

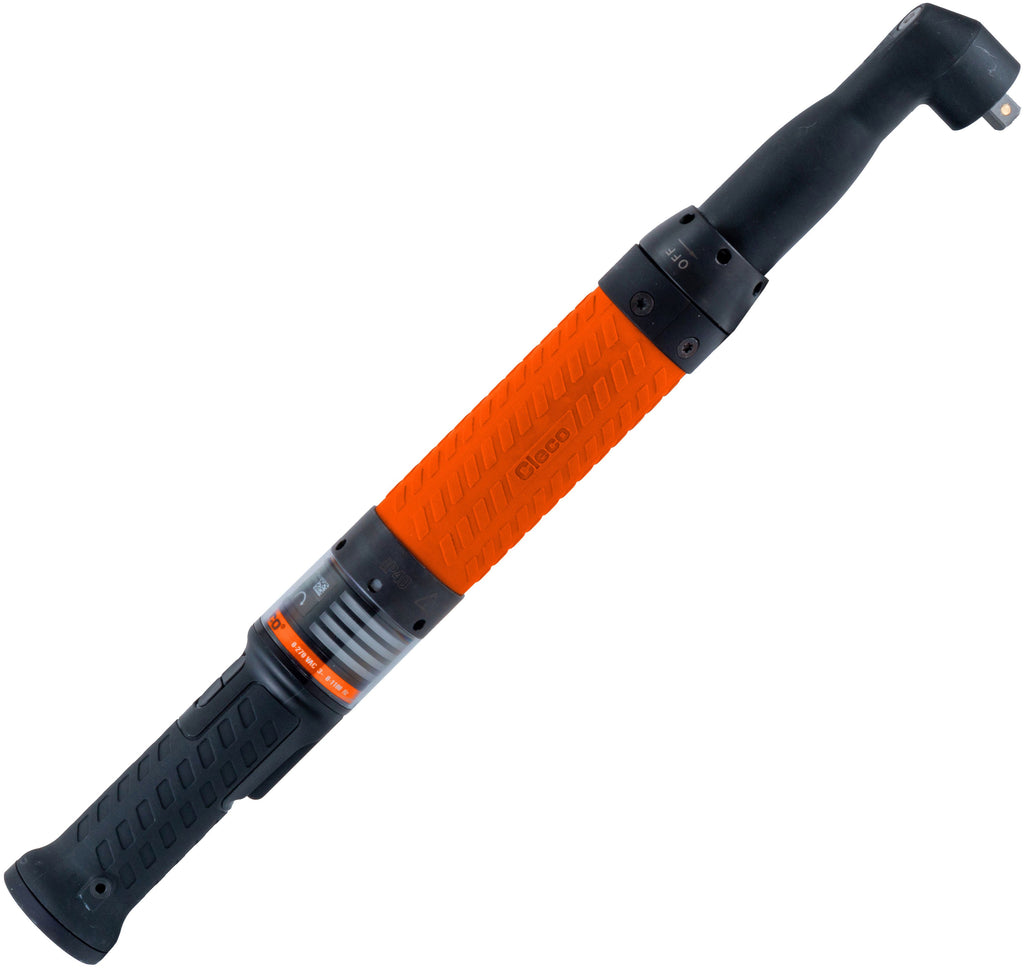

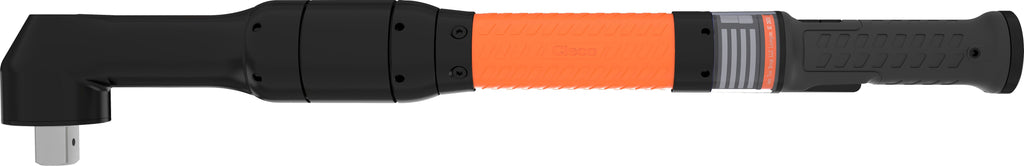

| Model: | 50EAN205NA6 |
| Torque Range Min: | 30.2 ft/lbs |
| Torque Range Max: | 151.2 ft/lbs |
| Free Speed: | 250 1/min |
| Weight: | 8.7 lbs |
| Output Drive: | 3/4" Sq. in|mm |
| Length: | 22.13 in |
| Side To Center: | 1.16 in |
| Angle Head Height: | 2.44 in |
