Features
- Brushless Operation
- Resolver Control
- Transducer Control
- Memory Intelligence

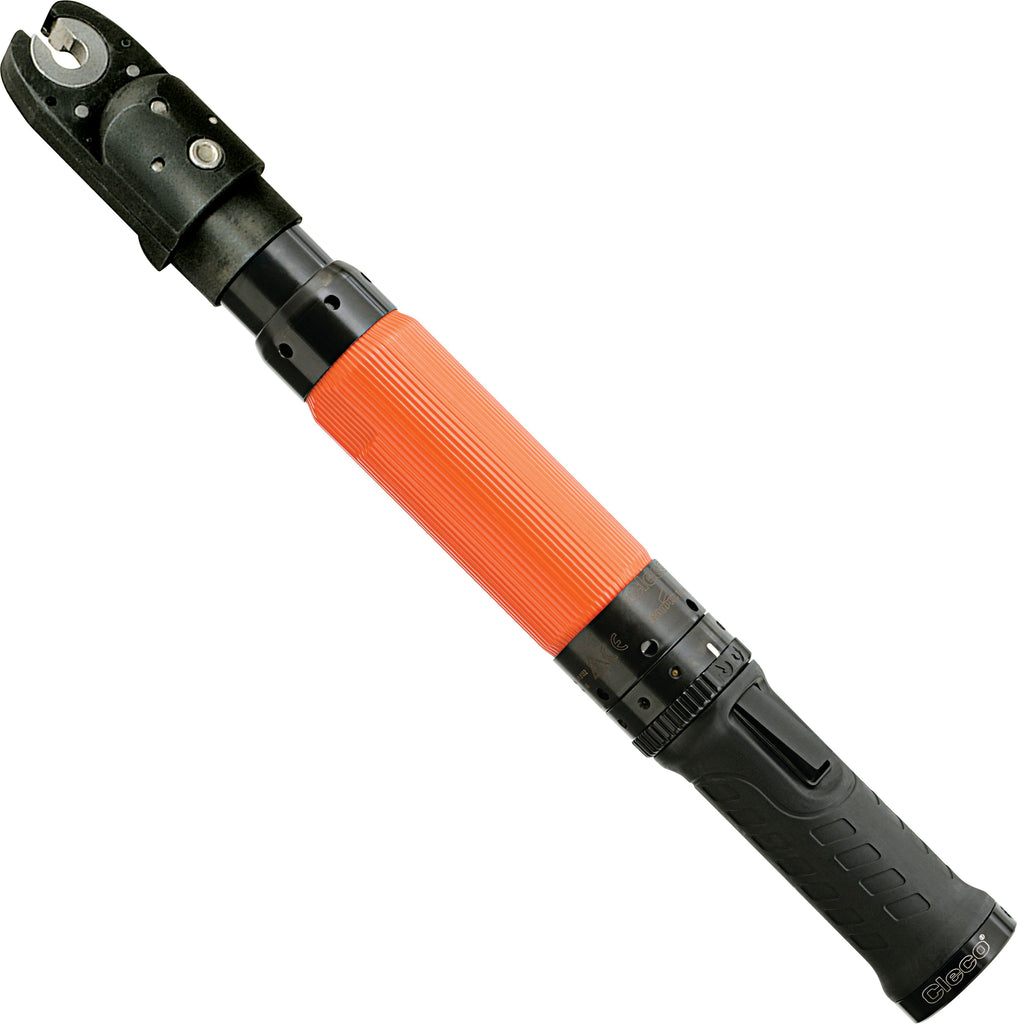

| Model: | 48ETE30T3 |
| Torque Range Min: | 11.1 ft/lbs |
| Torque Range Max: | 22.1 ft/lbs |
| Free Speed: | 1030 1/min |
| Weight: | 4.41 lbs |
| Length: | 16.6 in |
| Head Blade Ht “b”: | 0.59 in |
| Head End/cntr “d”: | 0.75 in |
| Head Opening “c”: | 0.472 in |
| Head Opening Depth D Dim: | 19 mm |
| Head Opening Width C Dim: | 12 mm |
| Head Thickness B Dim: | 15 mm |
| Head Width “a” Dim: | 1.65 in |
| Socket Size: | 0.75 in |
