Documentation
Descrição
Features
- Brushless Operation
- Resolver Control
- Transducer Control
- Memory Intelligence

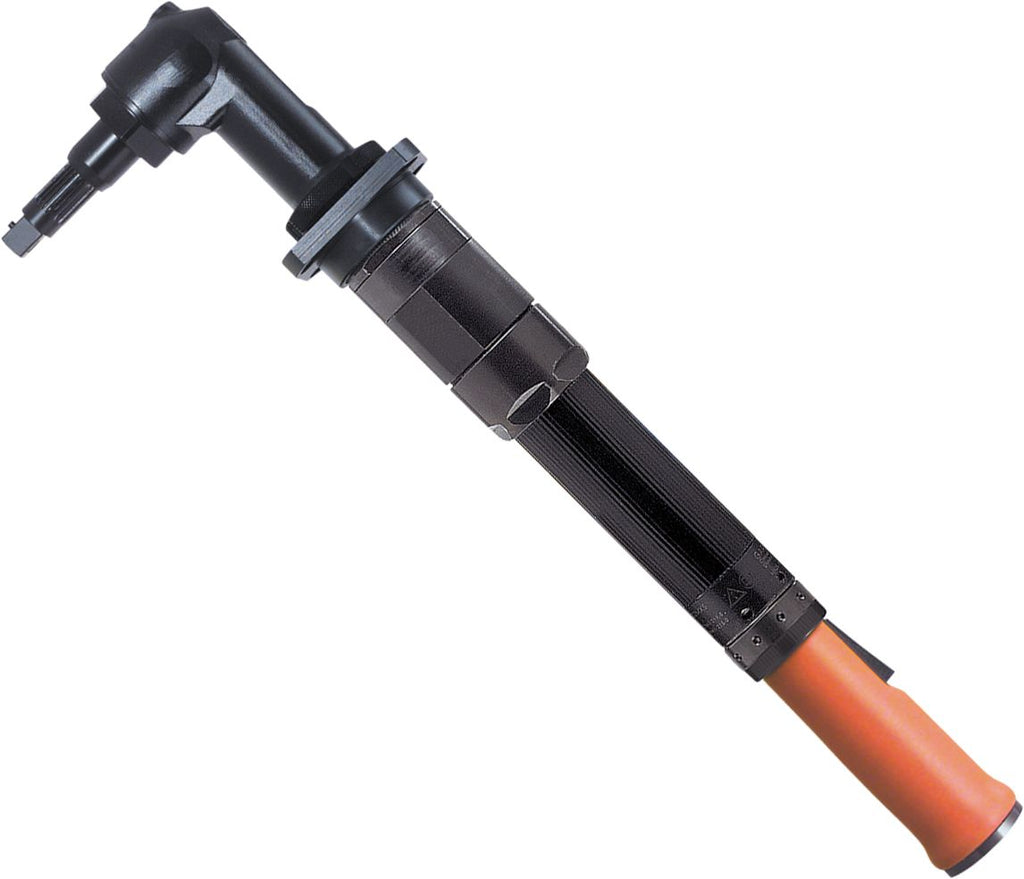

Model: | 18EAE30S131 |
Torque Range Min: | 4.43 ft/lbs |
Torque Range Max: | 22.1 ft/lbs |
Free Speed: | 655 1/min |
Weight: | 4.41 lbs |
Output Drive: | 3/8 Square Drive in|mm |
Length: | 16.0 in |
Side To Center: | 0.55 in |
Angle Head Height: | 2.76 in |
