Descrição
- Electro-hydraulic Li-Ion battery-powered tool for crimping turned male and female contacts
- 20kN pressure
- 2.8 second crimp cycle
- One battery charge lasts for about 300 with average load
- Recharge in under 30 minutes
- Multifunctional digital display, with settings shown in mm, inches or MIL selector settings according to M22520/1-01
- Takes 4/8 indent heads from Rennsteig
- 360° swivel head
- Indent positioning precision to 1/100 mm
- Wear monitoring
- Recalibration function
| P/N | 6702 0100 1 |
|---|---|
| Type | Tool in case withEU charger (without crimping unit) |
| Details |

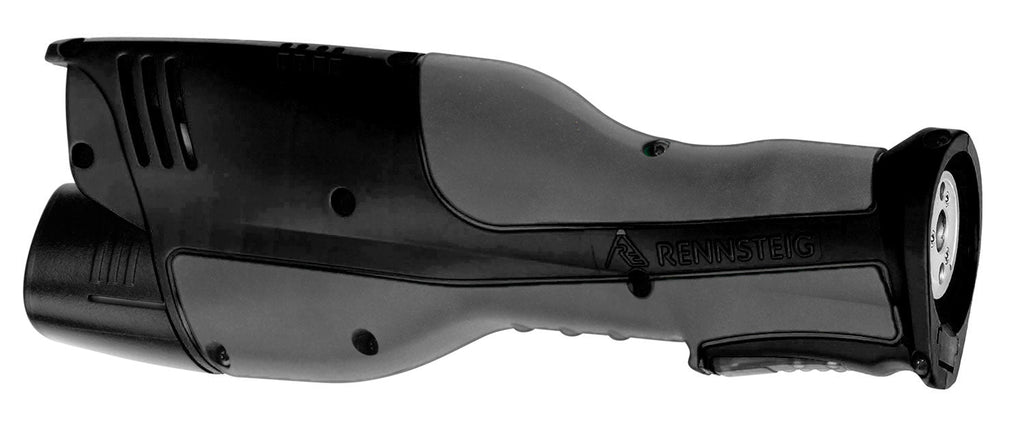

Tool body HC 20 in case w/o Crimping heads Basic equipment:
|
| Capacity | from 26 AWG up to 6 AWG (Depending on the crimping head) |
| Length |
12 9/16" |
| Overall Size |
20 15/32" x 17 3/4" x 4 7/16" (Case)
The case provides space for up to three crimping units, but these must be ordered separately. |
| Weight | 9.5 lbs. |
