Descrição

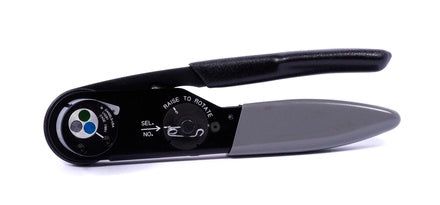

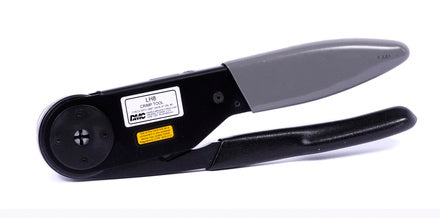

The LH8 tool produces both conductor and insulation crimps simultaneously on Burndy YHMM series contacts used in many aircraft wiring systems (Boeing contact designations BACC47DE4 & BACC47DE5). It is functionally comparable to the Burndy M10S-1 crimp tool with S1 Die & SL-53 Stop Bushing (combination).
The tool comes with a dedicated turret head positioner, LH281. It is gaged with gages G687 for the conductor & G743 for the insulation. The tool is approximately 93 ⁄4""x 21 ⁄2"" x 11 ⁄4""and weighs 15 oz.
The pneumatic power version of this tool is the WA27LH.
| Specification | Value |
|---|---|
| Shipping Weight | 1.64 LBS |
| National Stocking Number | 5120014628213 |
| Equivalent | Part Number |
|---|---|
| Pneumatic | WA27LH |
