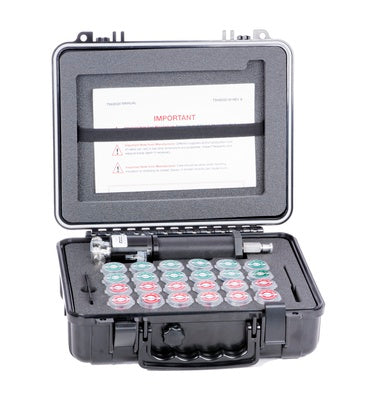

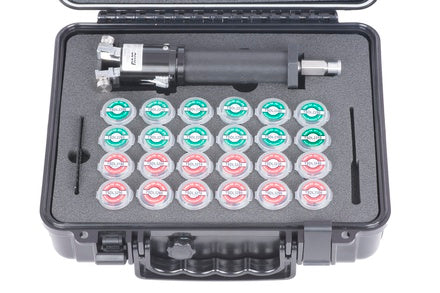

TSK8523 - Twist Strip Kit with TSK8500 & All (26) 2 & 3 Conductor Die Sets

• Mulit-Conductor Outer Jacket Stripper Kit
• Cable diameter range from 0.181" to 0.310"

Twist Strip Kit with TSK8500 & All (26) 2 & 3 Conductor Die Sets (Cable diameter range from 0.181" to 0.310")

Tool Specifications:
 The TSK8523 accommodates a variety of multi-conductor cable having diameters from 0.0625 incehs to 0.180 inches
 Strips the outer jacket of shielded twisted multi-conductor, and round cable. End stripping or window stripping of cable as needed.


- Interchangeable stripping dies (with cable track and carbide blade set)

- Adjustable blade depth settings

- Tool Weight: .81 lbs

- Shipping Weight:  6 lbs (includes entire tool and accessories in foam lined case)

- Die Arm Lever Force:  4.4 lbs

- Die Arm Lever Length:  1 inches

- Tool Dimensions:  1.75 inches wide, 9.75 inches  tall

- Cable Max OD:  < 0.310 inches

- Cable Min OD:  > 0.181 inches
