PBT1100 - Pneumatic .250 Wide Two-step Emi/Rfi Band Application Tool


Price:
$6,734.88

Lead Time:
Special Order

Documentation

Description

EMI/RFI Band Application System for M85049/128 Shield Termination Bands.

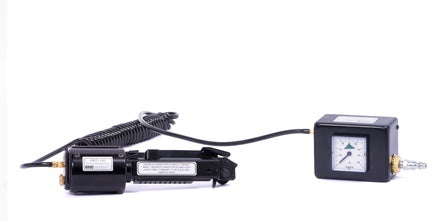

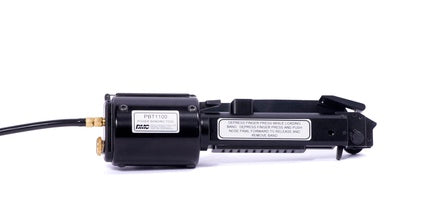

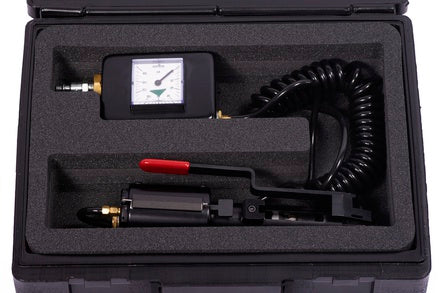

The PBT1100 & PMBT1200 series Pneumatic Band Application Tools are lightweight, dependable, and easy to operate. Many of the components are interchangeable with the corresponding hand tool. DMC’s Pneumatic Two-Step Banding Tools are compatible with all currently available bands to M85049/128.

PBT1100 .250 Wide Band Application Tool:
• Size:  8.75” L
• Weight:  1.52 lbs.
• Tension Range:  140–160 lbs.

A hand operated version of this tool is available, P/N:  DBS-1100.

Work with the DBS-R03 (M81306/2-01C) Roll Over Tool for .250 Wide Bands.

Verification of Two-Step EMI/RFI Band Tools:

DMC’s Two-Step Band Application Tools may be adjusted and verified to insure correct band tension. In order to make this operation simple and efficient for field use, DMC designed
and patented a compression fixture system (DBS-CG2A) which uses a Go/No-Go Gage to measure the tool tension.

The DBS-CG1 Laboratory Calibration Instrument will allow the operator to measure the exact tension produced by the tool.

A free standing holding fixture is available (DBS-CG1-F) to aid the calibration process by securing the DBS-CG1 and banding
tool in place. The DBS-CG1-F holding fixture secures the banding tool in place during calibration. This fixture only works with the Two-Step Tools and DBS-CG1 Calibration Instrument (Banding tools and DBS-CG1 are sold separately)
