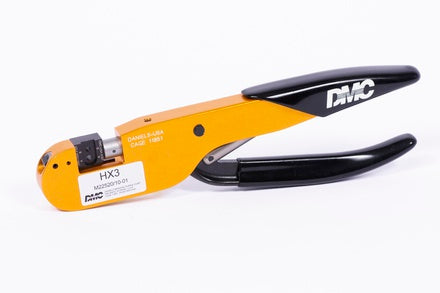

HX3 - Open Frame Crimp Tool M22520/10-01

2 reviews

Price:
$459.54

Lead Time:
4 Weeks

Documentation

Description

  • Qualified to AS22520/10*
  • Accommodates Daniels "X" series crimp dies

Qualified to AS22520/10*, the DMC HX3 crimp tool feature a system of interchangeable dies (accommodates "X" series dies) which eliminate the need for separate fixed die crimp tools for each and every different application.  Many maintenance and production organizations have standardized on one of these models, thus eliminating the cost associated with maintaining and calibrating bulky inventories of single purpose, dedicated tools.

Tremendous flexibility and cost advantages exist with this crimping system due to the wide variety of military and proprietary interchangeable dies available for this tool frame.  As new requirements evolve, a new set of dies is all that’s required to meet the demand.

Crimping dies are snapped into the tool frame and retained in place by internal spring clips.  They may be permanently secured, if desired, by pressing a roll pin into the holes provided.

The tool frame is equipped with a positive ratchet assembly which controls complete handle movement in both directions.

HEXagonal crimp dies are available in a variety of combinations having single, double, and even triple cavity design.  These dies accommodate most coaxial and triaxial connectors and contacts conforming to MIL-DTL-39012, AS39029, and numerous proprietary configurations.  Other designs are available for coaxial connections requiring different termination techniques.

Dies in various crimp patterns are also available for insulated and uninsulated terminal lugs, wire splices and end caps relating to M7928, MS17143, MS25036, MS25181, MS27429, MS25274, MS20659, M81824, MS21003 through MS21015, and commercial part numbers

If your application requirement is not already covered by one of our standard dies, our engineering department will be pleased to discuss a design to suit your needs.

Length:  9 inches
Weight:  approx. 11 oz.


Specification Value
Shipping Weight 0.94 LBS
Military Part Number M22520/10-01
National Stocking Number 5120013358582
National Stocking Number 5120001174830



Equivalent Part Number
Pneumatic PHX3

Reviews

Customer Reviews
4.5 Based on 2 Reviews
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
GR
01/07/2021
Gina R.
Chicago, US
Very Nice. Does what It should

The ratchet is extemely smooth and consistent every time

JR
01/05/2021
John R.
Newark, US
Good stuff

Smaller version of the standrard size HX4- enough said. Quality
