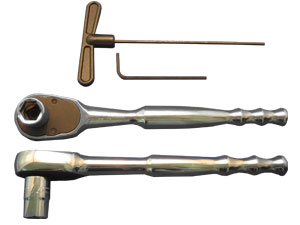

Hand Installation Tool High Strength Wrench Tip for Small Collars.
Ordering Information
• Determine collar driving hex and pin recess hex dimensions of the fasteners to be installed.
• See the table for “M” socket hex and “G” wrench tip hex combination to match collar driving hex and pin recess hex dimensions.
| “M” Socket Hex |
“G” Wrench Tip Hex |
Complete Tool Assy. Part No. |
Dimensions | Socket Square Drive |
Ratchet Wrench Assy. Part No. |
Socket Assy. Part No |
Wrench Tip Assy. Part No |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

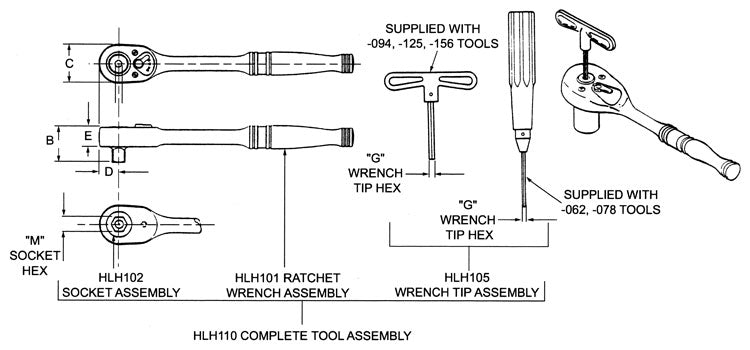

| A | B | C | D | E | F | |||||||
| 3/16” | 1/16" | HLH110-187-062 | 5.0 | 0.8 | 1.0 | 0.5 | 0.45 | 0.156 | 1/4" | HLH101/250 | HLH102-187 | HLH105-062 |
| 7/32” | HLH110-218-062 | HLH102-218 | HLH105-062 | |||||||||
| 1/4” | HLH110-250-062 | HLH102-250 | HLH105-062 | |||||||||
| 9/32” | HLH110-281-062 | HLH102-281 | HLH105-062 | |||||||||
| 5/16” | HLH110-312-062 | HLH102-312 | HLH105-062 | |||||||||
| 11/32” | 5/64" | HLH110-343-062 | HLH102-343 | HLH105-062 | ||||||||
| 7/32” | HLH110-218-078 | HLH102-218 | HLH105-078 | |||||||||
| 1/4” | HLH110-250-078 | HLH102-250 | HLH105-078 | |||||||||
| 9/32” | HLH110-281-078 | HLH102-281 | HLH105-078 | |||||||||
| 5/16” | HLH110-312-078 | HLH102-312 | HLH105-078 | |||||||||
| 11/32” | HLH110-343-078 | HLH102-343 | HLH105-078 | |||||||||
| 3/8” | HLH110-375-078 | HLH102-375 | HLH105-078 | |||||||||
| 5/16” | 3/32" | HLH110-312-094 | HLH102-312 | HLH105-078 | ||||||||
| 11/32” | HLH110-343-094 | HLH102-343 | HLH105-078 | |||||||||
| 3/8” | HLH110-375-094 | HLH102-375 | HLH105-078 | |||||||||
| 7/16” | HLH110-437-094 | 7.0 | 1.18 | 1.5 | 0.687 | 0.5 | 0.218 | 3/8" | HLH101-375 | HLH102-437 | HLH105-094 | |
| 1/2” | HLH110-500-094 | HLH102-500 | HLH105-094 | |||||||||
| 3/8” | 1/8" | HLH110-375-125 | HLH102-375-A | HLH105-094 | ||||||||
| 7/16” | HLH110-437-125 | HLH102-437 | HLH105-125 | |||||||||
| 1/2” | HLH110-500-125 | HLH102-500 | HLH105-125 | |||||||||
| 7/16” | 5/32" | HLH110-437-125 | HLH102-437 | HLH105-156 | ||||||||
| 1/2” | HLH110-500-125 | HLH102-500 | HLH105-156 | |||||||||
