Description

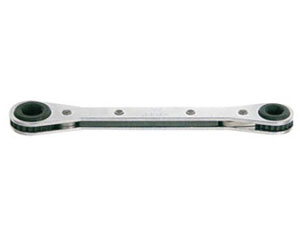

Hand Installation Tool Double Box Ratchet Wrench.
Ordering Information
• Determine collar driving hex dimensions of the fasteners to be installed.
• See the table for “E” and “F” socket hexes to match collar driving hex. Determine Complete Tool Assembly Part Number.
| Socket HexPart No. | Complete Tool Assy. Part No. |

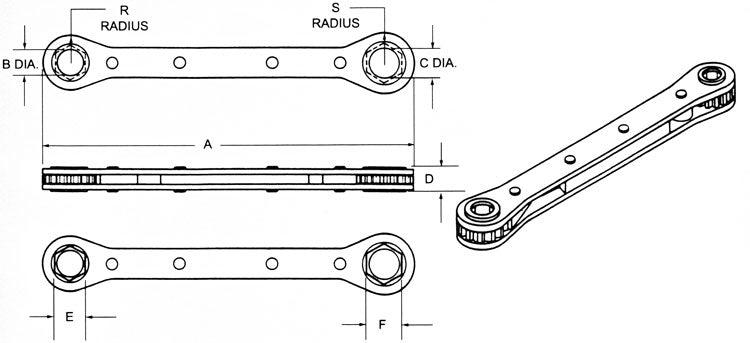

Dimensions | Radius | |||||
|---|---|---|---|---|---|---|---|---|
| E | F | A | B | C | D | R | S | |
| 7/32” | 1/4” | HLH149-218-250 | 4.25 | 0.171 | 0.171 | 0.38 | 0.28 | 0.312 |
| 1/4” | 9/32” | HLH149-250-281 | ||||||
| 1/4” | 5/16” | HLH149-250-312 | ||||||
| 9/32” | 5/16” | HLH149-281-312 | ||||||
| 5/16” | 11/32” | HLH149-312-343 | 5.50 | 0.265 | 3.28 | |||
| 5/16” | 3/8” | HLH149-312-375 | 0.375 | 0.440 | ||||
| 7/16” | 1/2” | HLH149-437-500 | 0.421 | 0.484 | ||||
