Description
Features
- Brushless Operation
- Resolver Control
- Transducer Control
- Memory Intelligence

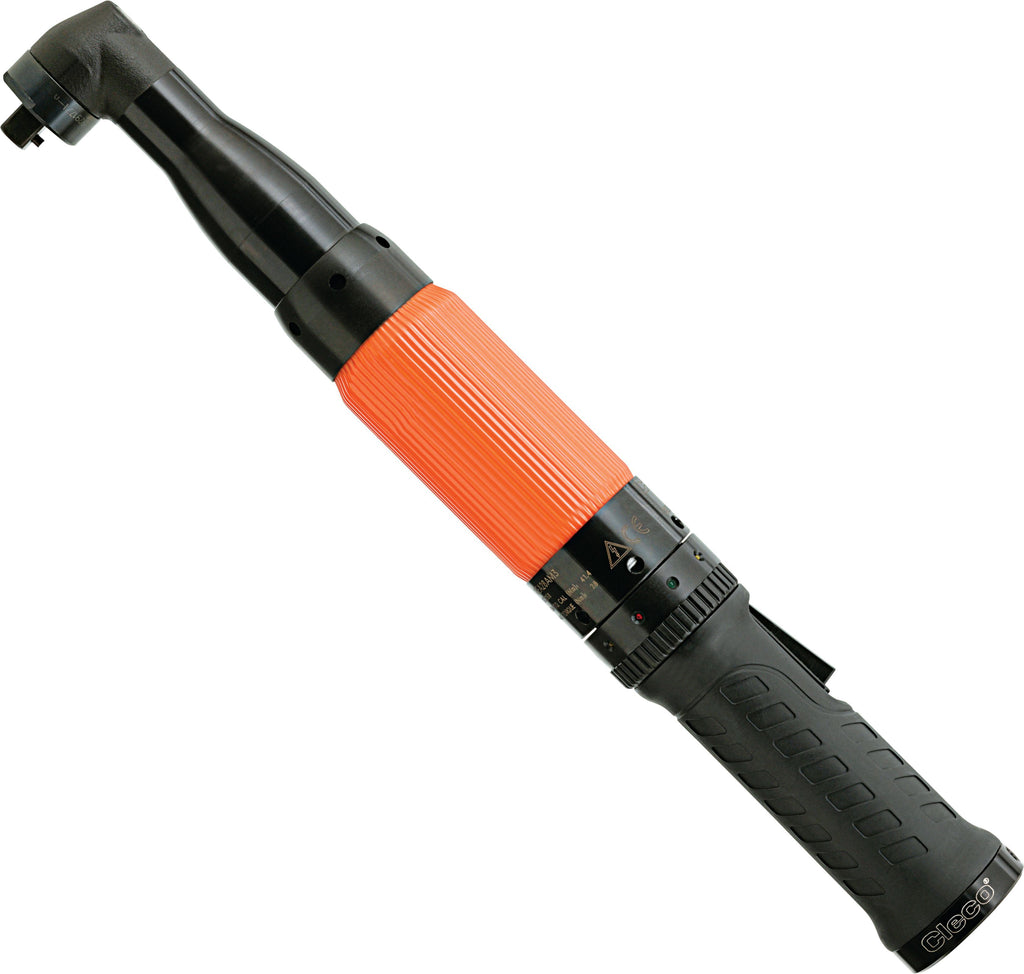

| Model: | 18EAE15AM3 |
| Torque Range Min: | 2.95 ft/lbs |
| Torque Range Max: | 11.1 ft/lbs |
| Free Speed: | 1300 1/min |
| Weight: | 3.31 lbs |
| Output Drive: | 3/8 Square Drive in|mm |
| Length: | 14.8 in |
| Side To Center: | 0.59 in |
| Angle Head Height: | 1.61 in |
