Features
- Accurate - Designed for safety critical applications with a CM/CMK of 2.0 at +/- 7% accuracy
- Economical - Save money, time and space by pairing up to 16 tools to just one Mpro Controller
- Reliable - Increase uptime with 500k cycles between maintenance periods
- Interchangeable - Decrease downtime by swapping tools quickly on the assembly line with the LiveWire memory chip

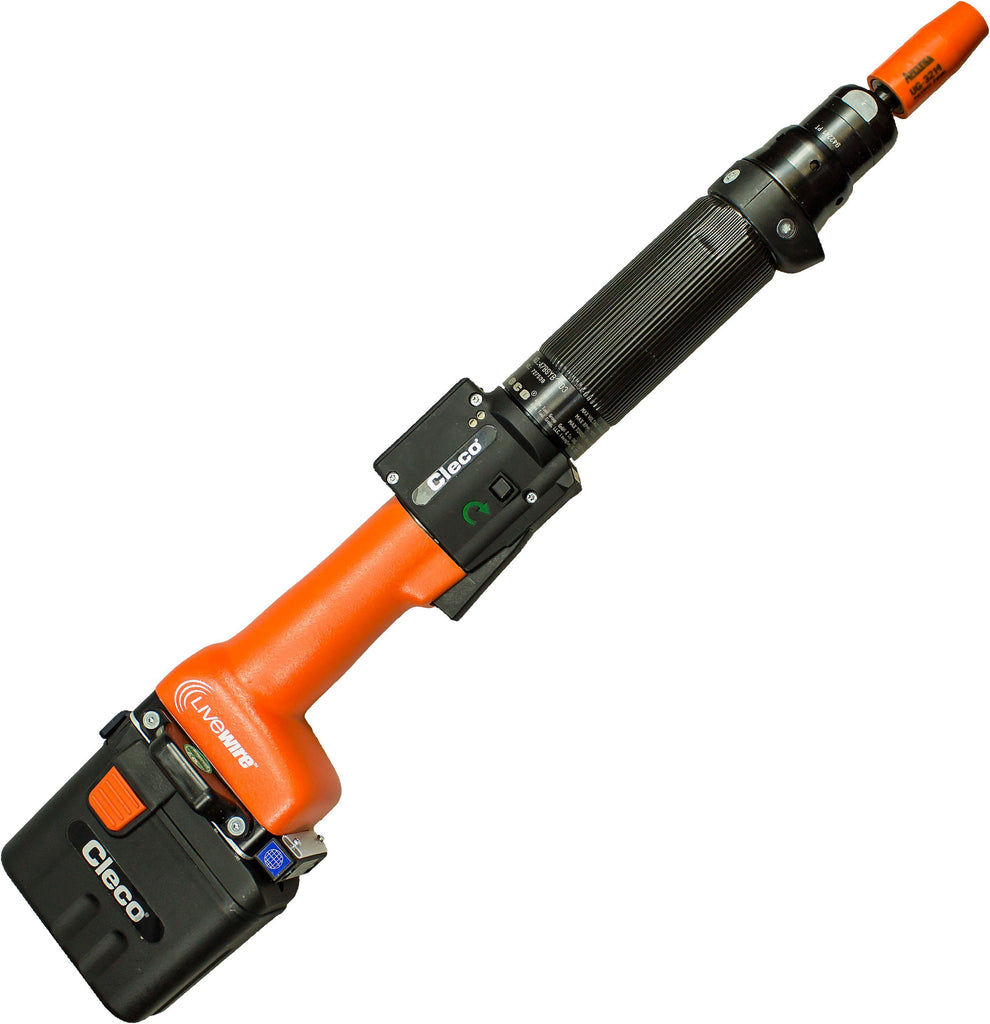

| Model: | 47BSYB60D4 |
| Torque Range Min: | 15.4 ft/lbs |
| Torque Range Max: | 44.2 ft/lbs |
| Free Speed (26v): | 145 1/min |
| Free Speed (44v): | 250 1/min |
| Weight: | 6.1 lbs |
| Output Drive: | 1/2" Square Drive in|mm |
| Length (w/26v Battery): | 23.3 in |
| Livewire Speed (vmax): | 250 1/min |
