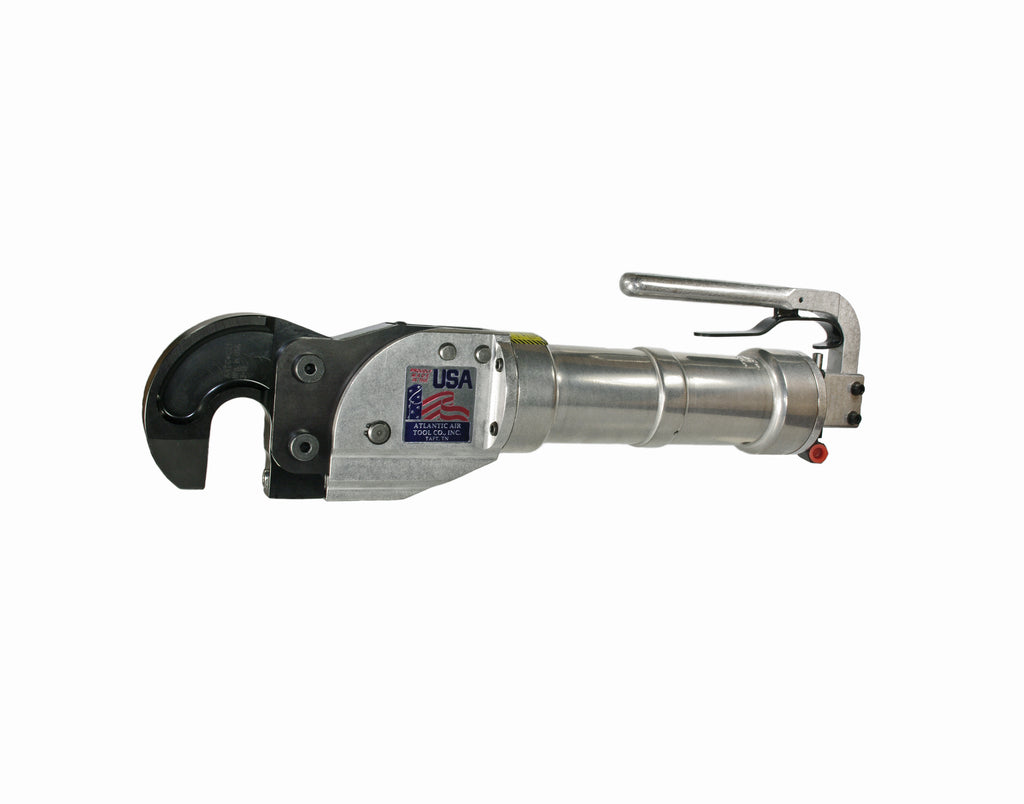

444CSH21 - Pneumatic C Squeezer - Swivel Head
| Model | 444CSH21 |
|---|---|
| Rivet Capacity Diameter - Aluminum | 5/16 (7.9) |
| Rivet Capacity Diameter - Steel | 1/4 (6.35) |
| Standard Yoke Dimensions - Reach | 2 1/8 (53.97) |
| Standard Yoke Dimensions - GAP | 1 1/2 (38.1) |
| Max Force with 90 PSI (6.21 Bar) Air Pressure PSI (KN) | 12,000 (53.4) |
| OOVERALL LENGTH Without Yoke | 19 23/32 (500.8) |
| OOVERALL LENGTH With Standard Yoke | 23 3/16 (588.96) |
| MAX RAM TRAVEL | 5/8 (19.05) |
| STROKE AT MAX POWER | 3/32 (2.38) |
