Description

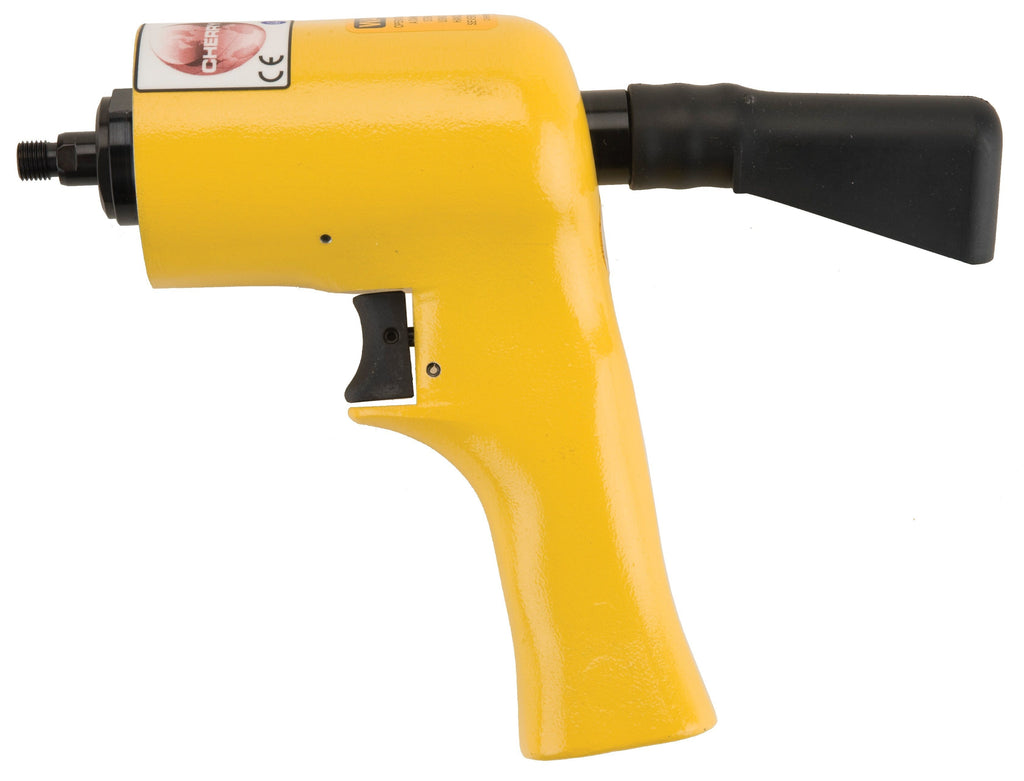

The G902 (feed through) & G902-15 (side eject) are all-pneumatic tools designed specifically for installation of nut plate rivets.
This tool utilizes straight pulling heads which can install 3/32" and 1/8" pull-through type nut plate rivets and 3/32" CherryLOCK 'A' rivets.
Specifications:
Air Pressure: 90 PSI (6.2 bar) min./120 PSI (8.2 bar) max.
Cycle Time: approximately one second
Noise Level: 60 dB (A)
Vibration: less than 2.5 m/s2
Air Consumption: .05 SCF / cycle (1.42 L / cycle)
This tool utilizes straight pulling heads which can install 3/32" and 1/8" pull-through type nut plate rivets and 3/32" CherryLOCK 'A' rivets.
Specifications:
Air Pressure: 90 PSI (6.2 bar) min./120 PSI (8.2 bar) max.
Cycle Time: approximately one second
Noise Level: 60 dB (A)
Vibration: less than 2.5 m/s2
Air Consumption: .05 SCF / cycle (1.42 L / cycle)
| STROKE | .75" |
| PULLING FORCE | 550 lbs (250 kgs) |
| WEIGHT | 2 lbs (0.9 kgs) |
