Description

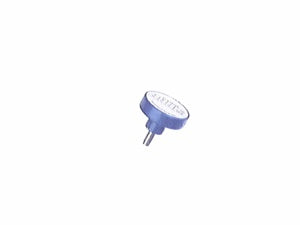

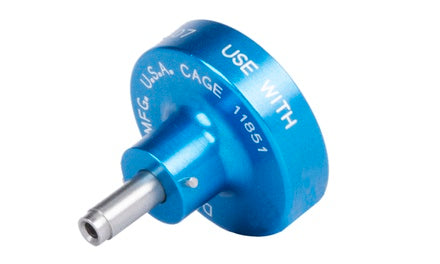

This positioner is used with the M22520/2-01, AFM8 tool frame and adapts the tool frame to a particular application. The data plate on each positioner designates which contacts the positioner accommodates for its wire size and indicates selector position.
Contacts serviced:
Microdot 96-0524-0000
Microdot 96-0624-0000
Can be used with these DMC Crimp Tools:
AFM8 Hand Crimp Tool Frame
WA22 Pneumatic Crimp Tool Frame
AFME8B Battery Crimp Tool Frame
| Specification | Value |
|---|---|
| Shipping Weight | 0.05 LBS |
| National Stocking Number | 5120001569200 |
