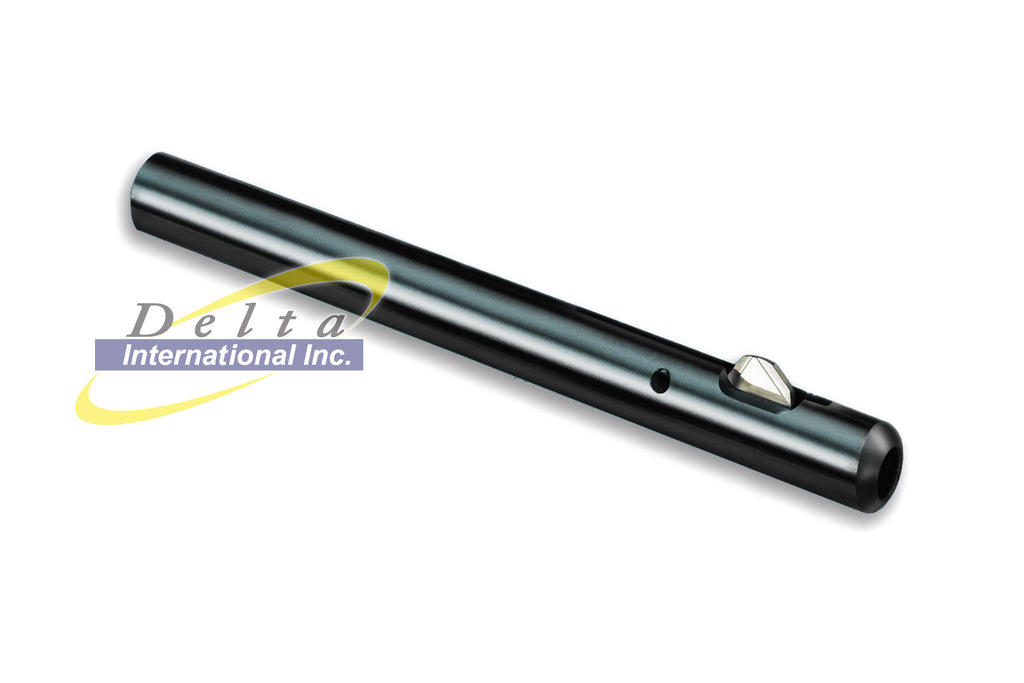

MYB-19.0 - Burraway Type MB Deburring Tool - Hole Size 19.0 mm


Price:
Request pricing

Lead Time:
Special Order

Documentation

Description

Burraway tools suit a variety of machines from manual to CNC – and can even be used in a hand-drill with excellent results.

They are available in a range of inch and metric sizes ranging from 0.093” (3/32”) to 2 inches or from 2mm to 50mm as standard, and a range of standard sizes for both inch and metric sizes and an assortment of blades are in stock.

The Burraway tools feature an inexpensive, replaceable cutting blade which adjusts to control the amount of edge break and can be easily replaced within a few seconds. A range of cutting-edge geometry options to suit different materials are offered, and as standard, tools are supplied already fitted with a double acting blade. The crowned and polished top surface of the blade will not mar the inside surface of the hole.

Supporting a simple method for easily adjustable cutting pressure, the corresponding adjustment screws, will match according to the tool as covered by our inch and metric programs.

Hole Size 19.0 mm
Dimension A 165.00 mm
Dimension B 33.30 mm
Dimension C 22.90 mm

REPLACEMENTS

Blade Number YB-DAP-4
Arbor Number MYB-19.0-D01
Plunger Number YB-07500-D04
Spring Number YB-5-D05
Adj. Screw Number MYB-5-D06
