Description

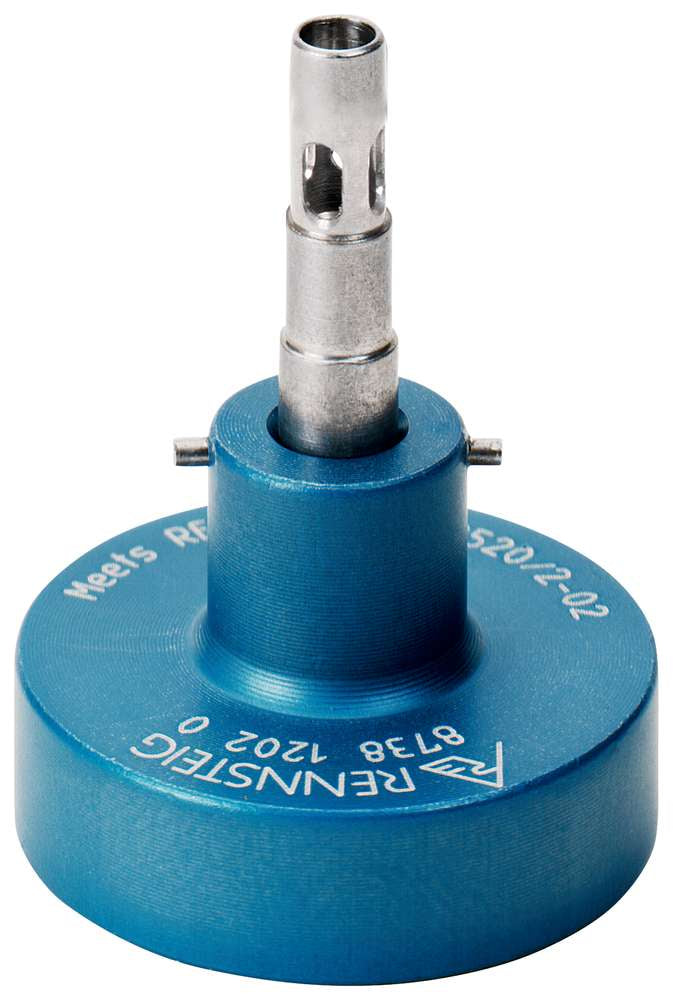

Single pin locators:
- Spring-loaded pin for precise positioning of the contact
- For crimp tools with adapter ring
- Identical design of common locators according to MIL/SAE AS22520
- Primarily developed for AS39029 and EN3155 contacts and similar ones
- Secure, reproducible crimps
| P/N | According to | Description | Works with | Weight |
| 8738 1202 0 |
M22520/2-02 | AS22520/2-02 (K1S) |
Single pin Locator |
8738 0000 6 RT 8736 0000 61 RT 636 0736 3 RT |
0.25 lbs. |
